Eddy Current Electrical Conductivity Meter

Eddy Current Meter

Capability

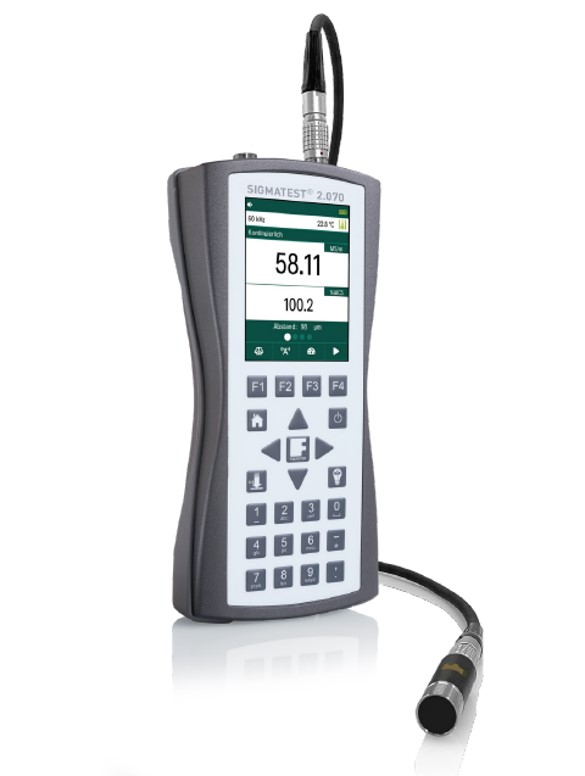

Portable eddy current instrument which measures the electrical conductivity of non-ferromagnetic metals based on the complex impedance of the measuring probe.

Specifications

  • Range: 0.5 to 65 MS/m or 1 to 112% IACS
  • Absolute accuracy: +/- 0.5 % of measured value <10.0 MS/m
  • Resolution: +/- 0.1 % of measured value
  • Operating frequency: 60 / 120 / 240 / 480 / 960 kHz
  • Automatic distance comensation: up to 750 um
  • Temperature compensation
  • Conforms to DIN 50994, ASTM E 1004, DIN EN 2004-1
  • Probe diameter : 14mm

Applications

  • Non destructive testing of electrical conductivity in metallurgy sector
  • Quality control eg. purity of metals, homogeneity of alloys
